Keychron

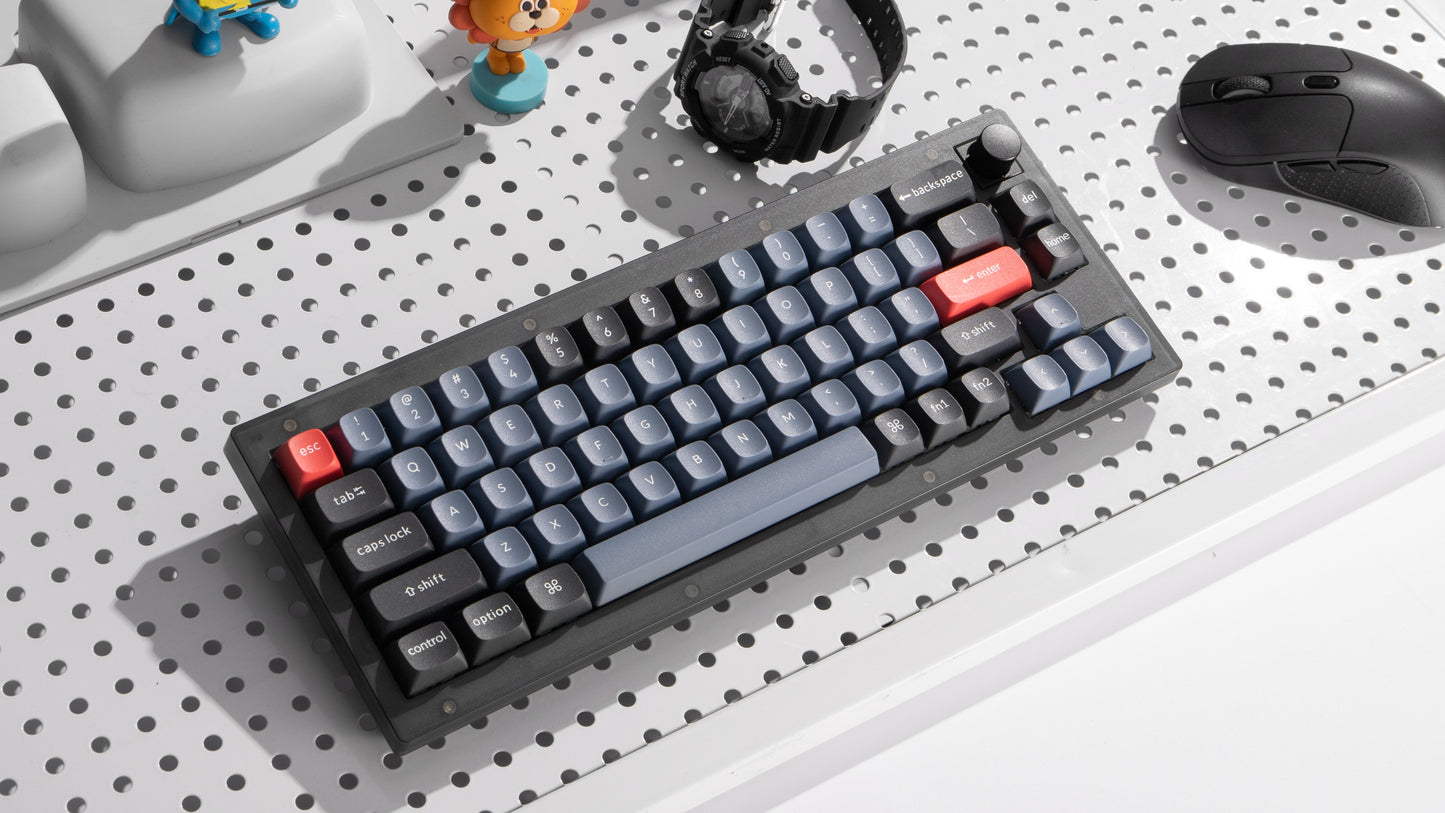

Keychron V2 - Barebone

Keychron V2 - Barebone

Regular price $75.15 USD
Regular price $75.15 USD Sale price $75.15 USD
Sale Sold out
Shipping calculated at checkout.
Color
Knob
  • 65% Layout
  • QMK/VIA Support
  • ABS plastic housing
  • MacOS & Windows Support
  • Keychron Screw-in Stabilizers
  • Hot-swappable
  • South Facing RGB
  • Silicone Acoustic Pad included
  • ANSI Layout
  • 1000hz Polling Rate

With an ultra-compact 65% layout, the V2 can offer endless possibilities of customization for numerous situations. Available with or without a rotary knob, this budget board is perfect for a first-time custom keyboard or as a light board to bring on the go.

 [Barebones Version does not come with switches or keycaps]

Materials

Body Material: ABS Plastic
Plate Material: Steel

Shipping

Canada/USA: Flat-Rate and Canada Post Express options available

International: Canada Post International Shipping Available

Specifications

Width: 123.25 mm
Length: 329.9 mm
Front Height: 20.23 mm (w/o keycaps)
Back Height: 26.75 mm (w/o keycaps)
Feet Height: 2.4 mm
Angle: 3.5° / 7.91° / 10.88°
Weight: 855 ± 10 g (Fully Assembled version)
Mount Style Tray Mount
Connectivity Usb Type-C
MCU Ultra-low-power ARM Cortex-M4 32-bit STM32L432 (128KB Flash)

View full details

Easy Assembly

Components designed for easy assembly and customization.

Modify to your heart's content.

Fully Programmable

The V2 is compatible with the most used custom keymapping software: QMK & VIA. Create macros and remap your favourite keys to any switch.

Don't want volume controls? The knob is customizable, too.

How to use VIA

New Screw-In PCB Stabs

Screw-in design provides stability and an improved modding experience.

The Keychron V2 also supports third-party stabilizers including TX or Durock.
